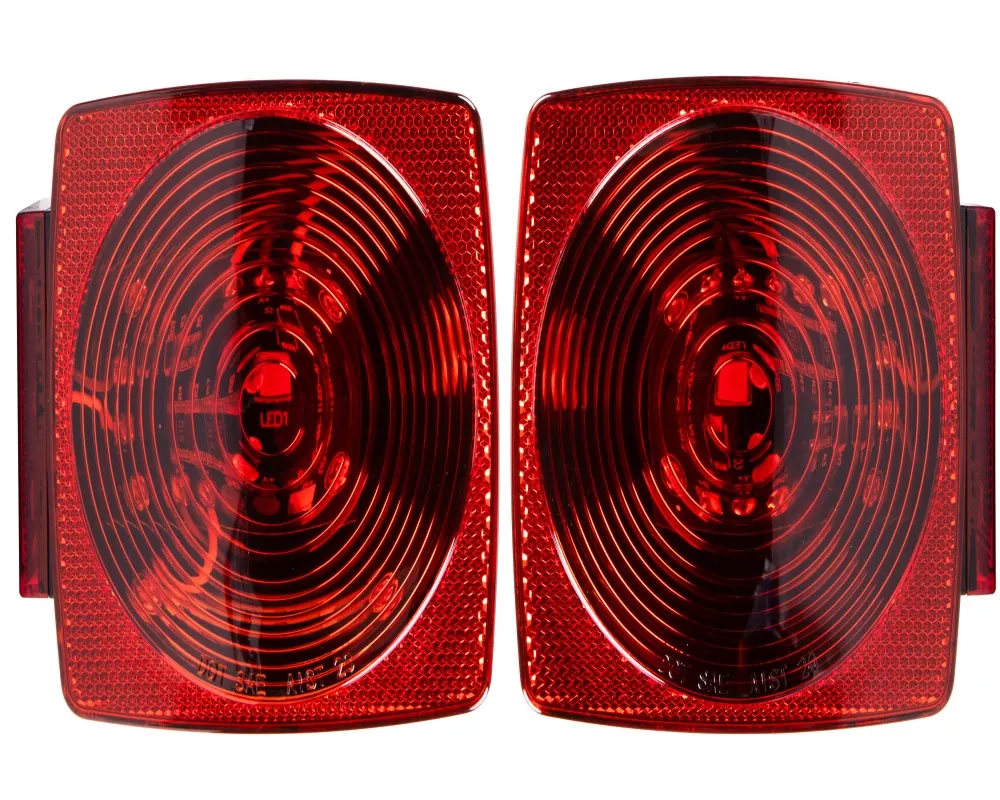

This 4 Inch 1 LED Under 80 Inch Trailer Light is a fully functional LED lighting kit suitable for narrow body trailers (width less than 80 inches), integrating six legal functions: braking, taillights, steering, rear reflection, side reflection, and side marker lights. It is installed with bolts to ensure a secure and reliable installation.
Our 4 '' 1 LED Under 80 '' Trailer Light lens material is acoustic sealed PMMA material with reflective function, and the shell material is ABS engineering plastic
Six in one multifunctional integrated design
Bolt installation, firm and reliable
Specially designed for narrow body trailer optimization
IP65 protection level, suitable for harsh environments
Reflective lenses enhance safety performance
|
Material |
PMMA Lens / ABS Housing |
|
IP Rating |
IP65 |
|
Left-side LEDs |
13 LEDs |
|
Right-side LEDs |
11 LEDs |
|
Applicable Trailer Width |
Under 80 inches (approx. 2.03 meters) |
|
Included Components |
2x 4" Combination Tail Lights, 2x Side Marker Lights, 1x License Plate Light Bracket |
|
Connector Type |
Flat 4-way Connector |
|
Harness Configuration |
22 ft Split Y-style Harness + 4 ft Color-coded Harness |
|
Lens Type |
Reflective Lens |
|
Mounting Method |
Stud Mount |
|
Functions |
6 Legal Functions |

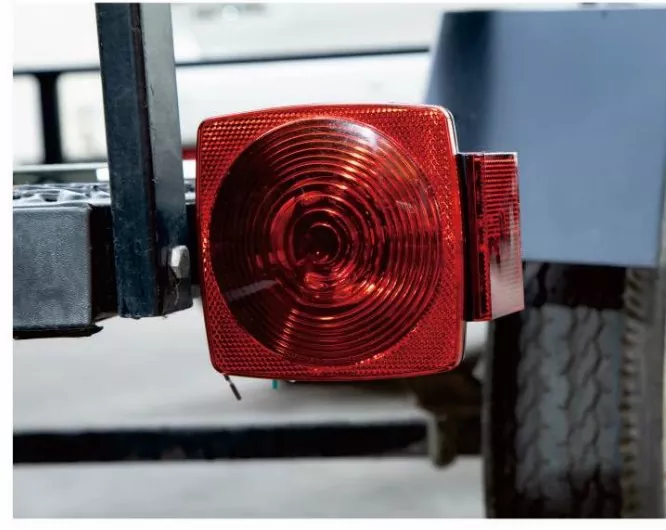

Our 4 Inch 1 LED Under 80 Inch Trailer Light can be used for small and medium-sized trailers with a body width of less than 80 inches, light cargo trailers, yacht trailers, multifunctional towing equipment, agricultural and landscaping equipment
Complete six function integrated design
Professional narrow body trailer solution
High quality reflective lens technology
A sturdy bolt installation system
Q1:what is the MOQ?
A1:Almost 500 unites for normal design,if needs to custom,the MOQ will be discuss.
Q2:Does your workshop have products in stock?
A2：Some designs have,but only have standard-sized products.If u need customized,it will take some time to manufacture them.
Q3:Will u accept our designs?
A3:Yes,OEM is welcomed,we can change color,size upon your option.
Q4:Do u offer samples?
A4:Of course,we are pleasure to provide the samples for you.
Q5:How about the delivery date?
A5:About 30-40 days after receiving the deposit.Urgent order will be handled case by case.
Q6:What kind of package of the products.
A6:some products are use color box and some are use card with blisters.OEM packing is also acceptable.
Q7:what payment terms can u accept?
A7:We can accept 30% deposit by TT and the balance against the copy of TT.
Q8:What delivery terms can u provide?
A8: we can accept FOB,CFR,CIF,EXW,Express delivery.
