Electronic Brake Controller is a proportional controller used for trailer electronic brake systems, suitable for 1 to 3-axis trailers. Equipped with real-time voltage display, high and low voltage protection, high-power surge protection, and user-friendly design, ensuring the safety, stability, and reliability of trailer braking.
Our electronic brake controller features a waterproof design with the largest waterproof cover on the market, an ergonomic double-sided grip design, and an LCD digital display screen that is clear and easy to read
Real time voltage monitoring and circuit status code display
High and low voltage automatic protection (cut-off below 90V, normal range of 104V-132V)
Surge protection capability: 30A series 10000 joules, 50A series 12000 joules
Suitable for 1-3 axis electronic brake systems
|
Compatible Braking System |
1 to 3-axle electric braking systems |
|
Voltage Monitoring Frequency |
3 times per second |
|
Normal Operating Voltage Range |
104V – 132V |
|
Low Voltage Cut-off Threshold |
Automatically cuts off power below 90V |
|
Surge Protection Capacity |
30A Series: 10,000 J |
|
Display Type |
LCD Digital Screen |
|
Waterproof Performance |
Large-sized waterproof cover, widely compatible with plug types |
|
Wire Connection Color Code |
Black: Battery Positive (+) |
Our electronic brake controller is suitable for various types of trailers such as RVs, trailer campers, freight trailers, and 1 to 3-axis electronic brake systems
Independently developed, with both appearance and functionality
Real time circuit analysis and voltage protection to enhance safety levels
Strong compatibility, compatible with most commercially available charging plugs

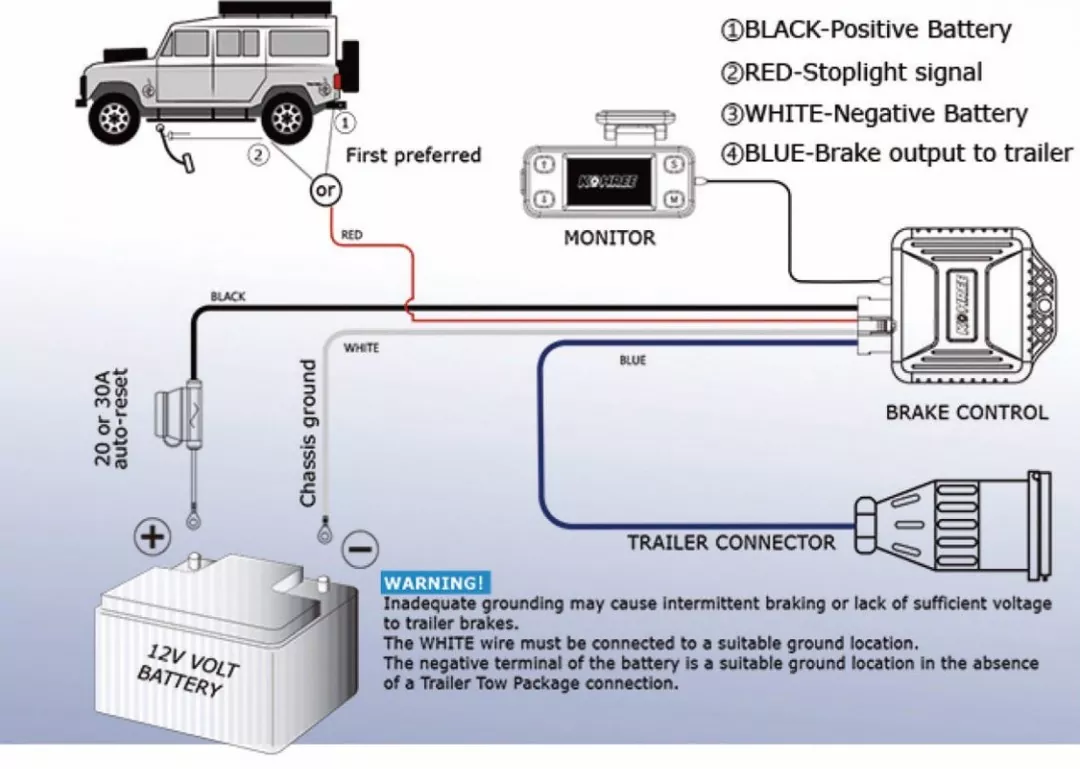

Connect the wires as shown in the diagram (black: battery+, red: brake light, white: battery -, blue: trailer brake)

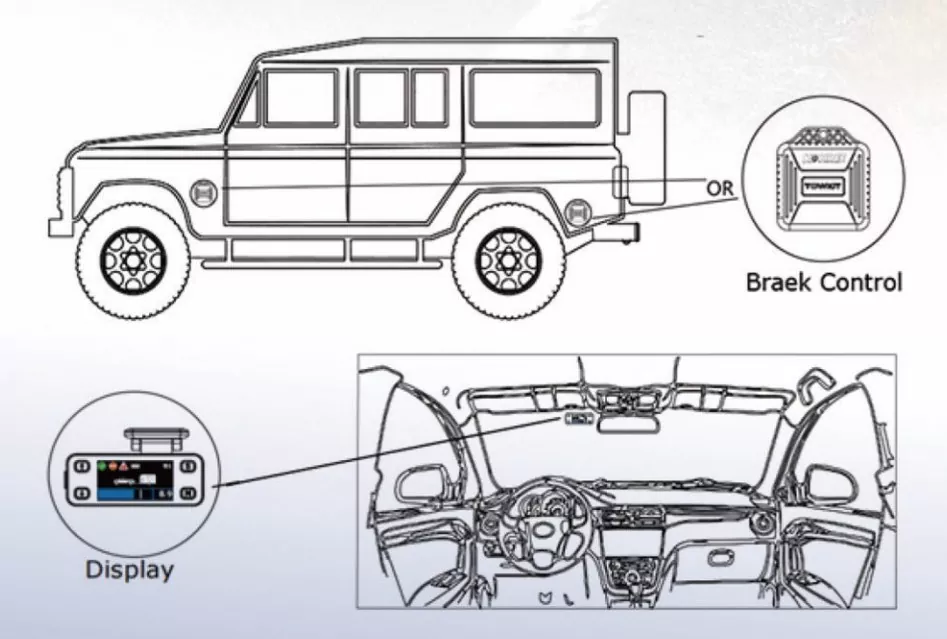

Installed in the recommended location, ensuring that the screen is visible and easy to operate
Adjust brake sensitivity by enhancing settings to adapt to different loads
Real time viewing of LCD screen display voltage and circuit status codes
Please confirm the vehicle voltage system matching before installation
Do not force use during abnormal voltage
The final sensitivity setting needs to be adjusted according to the actual load road conditions
Not applicable to trailers with non electronic braking systems
