This comprehensive guide explains what a trailer wiring harness is, why it’s critical for towing safety, how to choose the right harness, common types, installation tips, troubleshooting, maintenance, and answers to frequently asked questions. A trailer wiring harness connects the electrical system of a towing vehicle to a trailer, facilitating lights, brake signals, and power transfer. This detailed article includes tables, lists, expert references, and a clear structure to help readers of all levels understand this essential towing component.

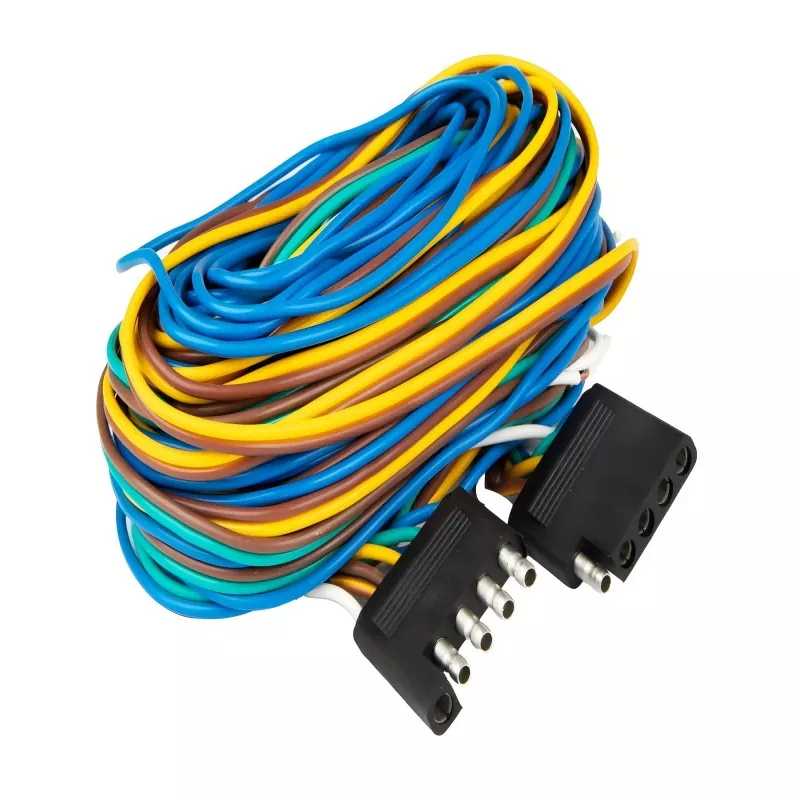

A trailer wiring harness is a bundled set of electrical wires and connectors that link a towing vehicle’s electrical system to the trailer’s electrical components. It ensures that signals like brake lights, turn signals, tail lights, and auxiliary power are transmitted properly between the vehicle and trailer. This type of cable assembly is similar to other cable harnesses used in automotive systems, designed to protect and organize multiple wires efficiently.
Without a properly functioning trailer wiring harness, you cannot safely tow a trailer. It enables:
Trailer wiring harnesses vary by connector type and number of wires. Below is a quick overview:
| Type | Connector | Typical Use |
|---|---|---|
| Four-Wire | 4-Pin Flat | Basic lighting on utility trailers. |
| Five-Wire | 5-Way | Adds electric brake signals. |
| Six-Wire | 6-Pin Round | Auxiliary power and reverse lights. |
| Seven-Wire | 7-Pin | Comprehensive connections including battery charging. |
Selecting an appropriate wiring harness is critical for performance and safety. Consider the following factors:
Installation can vary by harness type, but generally includes:
Routine inspection helps extend harness life and prevent failures:
What does a trailer wiring harness do?
A trailer wiring harness facilitates electrical communication between your towing vehicle and trailer, allowing lights, signals, auxiliary power, and brake controls to function correctly.
Why must I choose the right connector type?
Connector types vary by trailer and vehicle; matching them ensures accurate signal transmission and prevents electrical faults.
How often should I inspect my trailer wiring harness?
Inspect it at least monthly for corrosion, breaks, or loose connections to maintain safe towing performance.
Can a trailer wiring harness fail?
Yes, harnesses can fail due to moisture ingress, abrasion, corrosion, or poor connections; regular maintenance reduces this risk.
Is professional installation necessary?
While many modern harnesses are “plug-and-play,” complex systems or vehicle-specific requirements may benefit from professional installation.
