This is a 1-1/4 Inch Round Marker Clearance Trailer Light that complies with SAE P3 standards. The product adopts sound wave sealed PMMA lens and ABS shell, with IP65 protection level, built-in 3 LED light sources, and adopts hard wire connection and rubber sleeve installation method, suitable for various commercial vehicles.
Our 1-1/4 Inch Round Marker Clearance Trailer Light is composed of a sonic sealed PMMA lens and an ABS engineering plastic shell
IP65 protection level, completely dust-proof and water-resistant;
3 LED designs, high brightness and long lifespan;
Rubber sleeve installation, suitable for different installation thicknesses;
Soundwave sealing technology ensures permanent waterproofing .
|
Product Name |
1-1/4-Inch Round Marker Clearance Light |
|
SAE Code |
P3 |
|
Material |
PMMA Lens + ABS Housing |
|
Protection Rating |
IP65 |
|
LED Quantity |
3 LEDs |
|
Connection |
Hard Wired |
|
Mounting |
Grommet Mount |
|

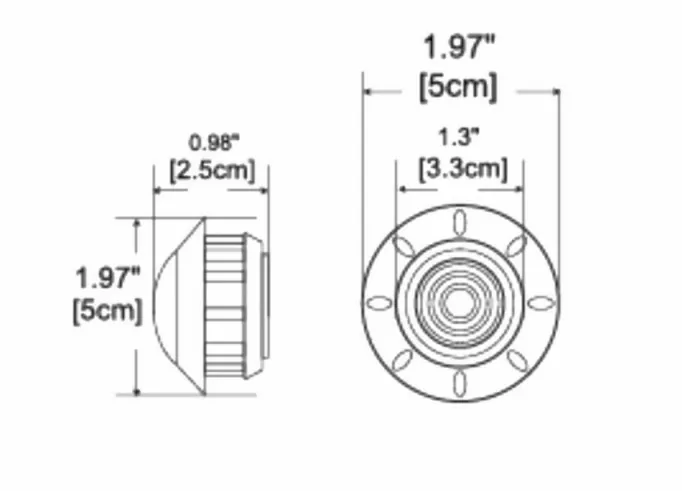

Dimensions |
Diameter 5cm × Height 3.3cm |
Our 1-1/4 Inch Round Marker Clearance Trailer Light Application scenarios: Sign lights and clearance lights for commercial vehicles such as heavy-duty trucks, trailers, construction machinery, and buses
Certificate: Compliant with SAE P3 certification standards.
Soundwave sealing technology ensures long-term reliability of products
Rich experience in commercial vehicle lighting products
Drill holes of corresponding size at the installation location
Thread the lamp body through the installation hole
Put on the rubber gasket from the back and fix it in place
Connect the hard wire and perform insulation treatment
1.Ensure that the rubber gasket is intact and undamaged during installation
2.Pay attention to correct polarity when wiring
3.Do not apply excessive pressure on the surface of the lens
