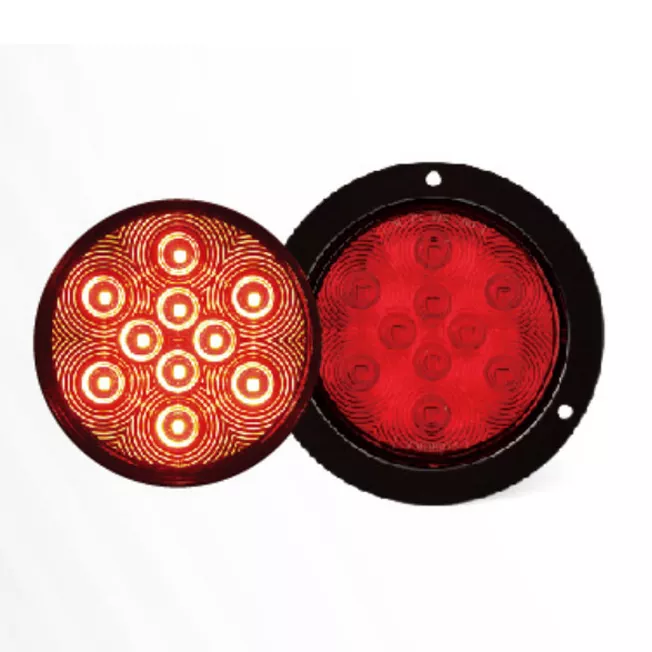

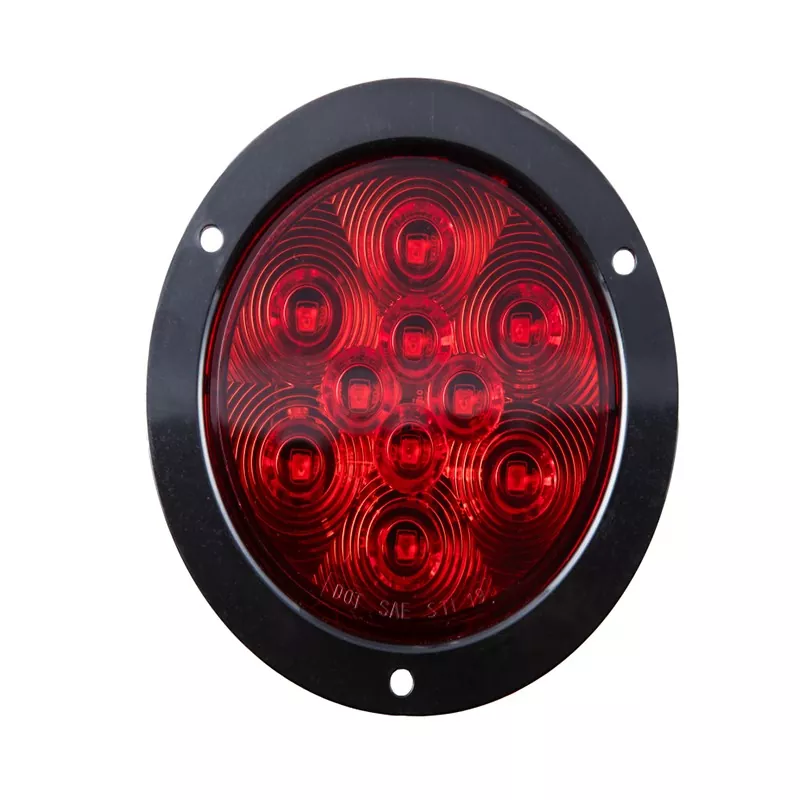

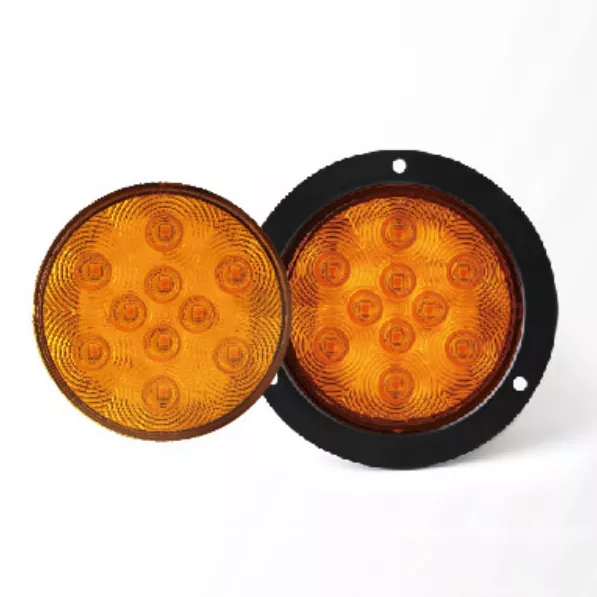

4 Inch LED Marker Clearance Trailer Light

This is a 4 Inch LED Marker Clearance Trailer Light, available in red and amber (below 80 inches installation height) versions. The product complies with SAE standards and has an IP65 protection level. It uses a sealed PMMA lens and ABS housing, with 10 built-in LED beads. The connection method is a 3-wire PL-3 interface, and supports both embedded and surface mounting.

What are the advantages of this product?

Our 4 Inch LED Marker Clearance Trailer Light lens is made of PMMA, which is highly transparent and UV resistant; The shell is made of ABS engineering plastic, which has high strength and impact resistance

1.The sealing method is ultrasonic sealing, ensuring IP65 waterproof and dustproof

2.Using 10 LEDs, high brightness and fast response

3.Compliant with SAE standards and applicable regulatory requirements

4.Flexible installation, supporting both grommet and surface installation methods

Parameters

Applications

Our 4 Inch LED Marker Clearance Trailer Light Can be used for trailers, semi trailers, construction vehicles, trucks, agricultural machinery, ships, etc

Certificates and Compliance

Compliant with SAE Motor Vehicle Engineering Association standards and applicable to DOT related regulations

Why choose us？

Excellent sealing technology, suitable for harsh weather conditions; Various installation methods, suitable for different vehicle models; Complete product models to meet different color and installation requirements

Product PrecautionsInstructions for use: Select the corresponding model (Grommet or Surface) according to the installation method, use a 3-wire PL-3 connector for wiring (usually black/white/red), ensure that the sealing ring is intact during installation, and lock the fasteners

Attention: Please disconnect the power before installation to ensure correct wiring and avoid short circuits. Amber lights are only suitable for installation heights below 80 inches
