This is a 4 Inch LED Low Profile Under 80 Inch Trailer Light kit designed specifically for trailers with a width of less than 80 inches (approximately 2.03 meters). The product includes a complete lighting system, using reflective lenses and bolt installation methods, in compliance with SAE standards, providing a comprehensive trailer lighting solution.
The lens is made of acoustic sealed PMMA material, which has good transparency and strong durability
The shell is made of ABS engineering plastic, which is impact resistant and corrosion-resistant
1.Low rise design, simple appearance, does not take up space.
2.Reflective lenses enhance nighttime safety.
3.Bolt installation, firm and reliable.
4.IP65 protection level, dustproof and waterproof.
|
Material |
PMMA Lens / ABS Housing |
|
IP Rating |
IP65 |
|
LED Configuration |
Left-side: 13 LEDs, Right-side: 11 LEDs |
|
Applicable Trailer Width |
Under 80 inches (approx. 2.03 meters) |
|

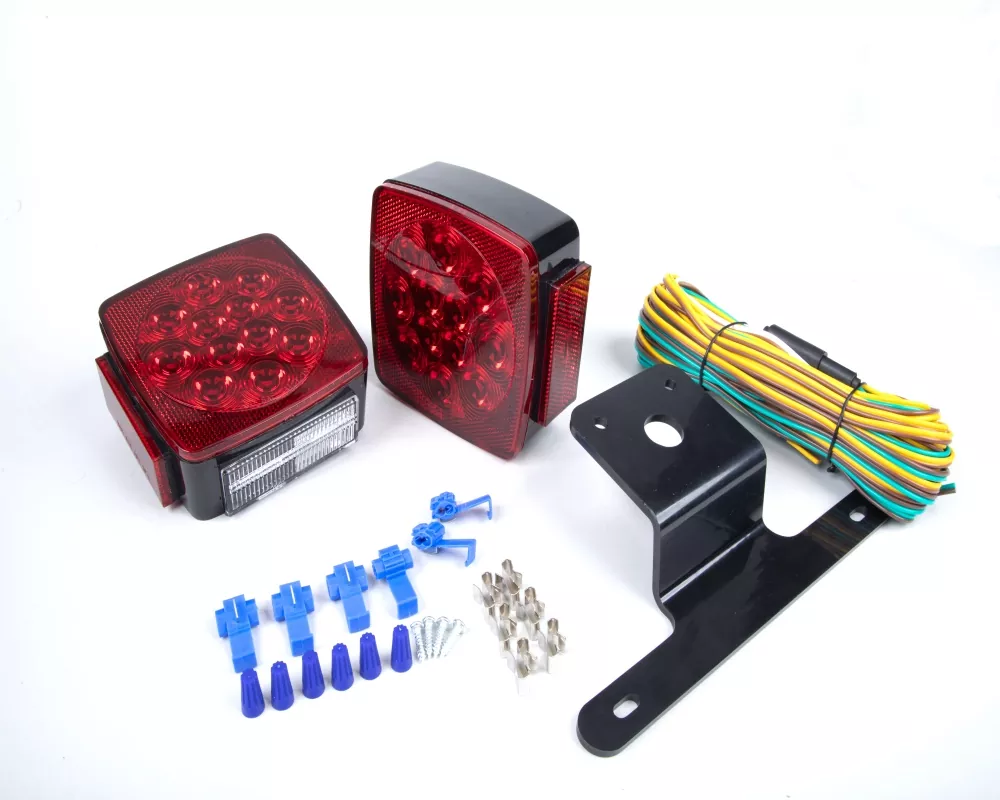

Included Components |
2x 4" Combination Tail Lights, 2x Side Marker Lights, 1x License Plate Light Bracket |
|
Harness Configuration |
22 ft Split Y-style Harness + 4 ft Color-coded Harness |
|
Lens Type |
Reflective Lens |
|
Mounting Method |
Stud Mount |
|
Product Type |
Low Profile Trailer Light Kit |
Our 4 Inch LED Low Profile Under 80 Inch Trailer Light can be used for various small and medium-sized trailers with a width of less than 80 inches, including freight trailers, equipment trailers, yacht trailers, RV trailers, agricultural and industrial trailers
Reasons for choosing us
Professional low rise design, suitable for installation environments with limited space
Complete kit configuration, easy installation
High quality materials and manufacturing processes
Use this product to confirm that the trailer width meets the requirements (less than 80 inches), then use the provided bolts for installation, connect the wiring harness according to color coding, and test all lighting functions after installation
Please note that this product is only suitable for trailers with a width less than 80 inches. Ensure that all connections are secure during installation; Regularly check the cleanliness and working condition of the lighting fixtures; Avoid damaging wires during installation
